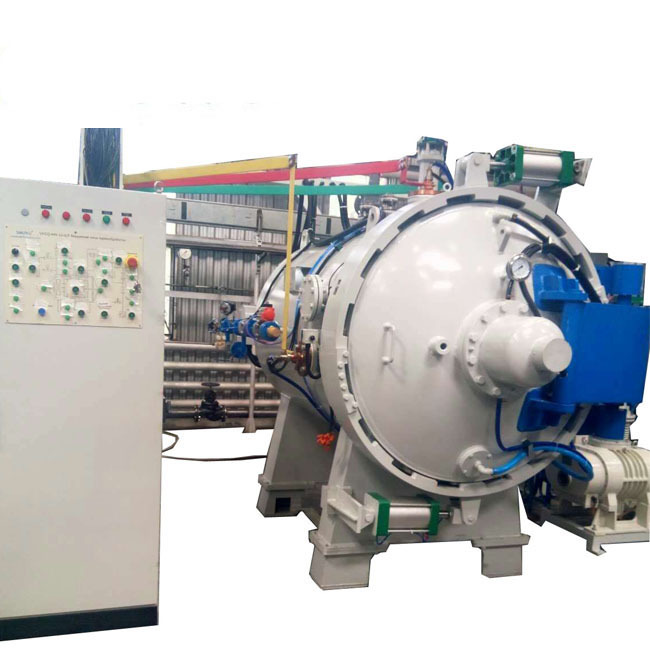

Tools steel vacuum annealing furnace
1200c high temperature industrial vacuum annealing furnace
Vacuum Annealing Furnace is applied for annealing and aging treatment of a variety of alloy materials, devices (tungsten, molybdenum, niobium, copper alloy, etc.), magnetic materials, electrical steel, magnetic alloy, stainless steel, heat-resistant alloys, copper and its alloys, hydrogen storage alloy, active and hard molten metal. It can also be used for vacuum sintering of magnetic material, diamond, hydrogen storage material reduction. The control system was controlled by PLC, temperature was controlled by intelligent temp controller, accurate control, high automation. User can choose auto or manual undisturbed switching to operate it, this furnace has abnormal condition alarming function, easy to operate.
Environmental protection performance has been improved, maintenance cost saving, energy cost saving.
|
Name |
Parameter |
|
vacuum heat treatment furnace (hardening, annealing, tempering, quenching) |
steel heat treatment |
|
Model |
Horizontal / Vertical |
|
Ultimate vacuum |
Custom made |
|
Pressure rising rate |
0.5pa/h ( adjustable ) |
|
Max temperature |
Custom made |
|
Temperature uniformity |
±3℃ / ±5℃ |
|
Heating power |
Custom made |
|
Temperature control method |
Intelligent programmable temp controller |
|
Control method |
PLC auto/manual interlock protection |
|
Max gas charging pressure (absolute pressure) |
Custom made |
|
Model |
Temperature |
Max. Temp .(℃) |
Ultimate Vacuum Degree condition) |
Pressure |
Temperature |
Loading (Kg) |
|
RVA-448 |
400x400x800 |
1300 |
2x10-3 |
0.5 |
±5 |
100 |
|
RVA-459 |
450x450x900 |
1300 |
2x10-3 |
0.5 |
±5 |
150 |
|
RVA-669 |
600x600x900 |
1300 |
2x10-3 |
0.5 |
±5 |
200 |
|
RVA-6612 |
600x600x1200 |
1300 |
2x10-3 |
0.5 |
±5 |
300 |
|
RVA-7712 |
700x700x1200 |
1300 |
2x10-3 |
0.5 |
±5 |
500 |
|
RVA-8812 |
800x800x1200 |
1300 |
2x10-3 |
0.5 |
±5 |
800 |
|
RVA-1110H(Vertical) |
φ1100x1000 |
1300 |
2x10-3 |
0.5 |
±5 |
2000 |
|
RVA-353575 |
350x350x7500 |
1300 |
2x10-3 |
0.5 |
±5 |
300 |
Application fields: Die steel, stainless steel, gear, high speed steel, tool steel and so on.
