Features

Specifications

Condition: New

Type: Induction Furnace

Usage: Heat Treatment Furnace

Video Outgoing-inspection: Provided

Machinery Test Report: Not Available

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: PLC, Motor, Pump

Voltage: Customized

Dimension(L*W*H): Customized

Weight (T): 10 T

Power (kW): 100

Warranty: 12 Months

Key Selling Points: High Productivity

Applicable Industries: Manufacturing Plant, Energy & Mining

Showroom Location: None

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Rated Power: 200-540KW: Annealing Furnace

Highest Temperature: 950â„ƒ: Annealing Furnace With Protective Atmosphere

Weight Of Cover: 3.5-10T: Air Flow For Cooling: 10000-20000 M3/h

Air Cooling Rotating Speed: 1500r/min: Water Flow For Cooling: 8-18 R3/h

Max. Loading Capacity: 8-60T: Max. Diameter For Loading: 1000-2200mm

Impeller Diameter For Fan: 650-1050mm: Diameter Of Inner Cover: 1200-2400mm

Electrical Annealing Furnace: Induction Furnace

Annealing Furnace For Wire Coils: Bright Annealing Furnace

Recrystalization Annealing Furnace: Soft Annealing Furnace

After Warranty Service: Online Support, Field Maintenance And Repair Service

Local ServiceÂ Location: None

Certification: CE/CB/FCC/CQC/ISO

Basic Infomation

Certification: CE/CB/FCC/CQC/ISO

Payment & Shipping Terms

Packaging Details: annealing furnace packed by Standard Wooden Cases wrapping with stretching films

Supply Ability: 60 Set/Sets per Year Bell type annealing furnace

Product Description

Products Description

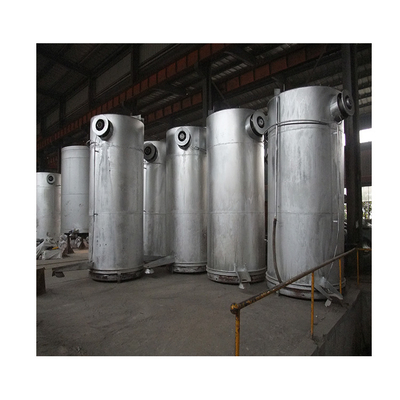

Annealing furnace for steel wire coils and steel strips

Bell type annealing furnaces are mainly used for the bright annealing or black annealing of steel strips, steel wires, copper stips, copper pipes and other standard items in bicycles, chains industries, etc. Especially low/medium/high carbon steel wire rods/ coils

II. Detailed introduction to all parts of annealing furnace

2.1 Electric heating cover (include upper electricity connecting cabinet)

Shell of electric heating cover are completely metal steel structure, welded by Q235 steel and profiled bars, the thickness of shell is 6mm

2.2 Cooling cover

Cover body is made of Q235 armor plates in 5mm thickness. Two cooling fans with power 1.1KW are fixed on the top.

2.3 Inner cover (include direction guiding poles)

Inner cover is made of stainless steel (material 1Cr18Ni9Ti) armor plates in 6mm thickness

2.4 Furnace base

Furnace base is made of completely sealing steel structure.

2.5 Electric control system

Electric control cabinets are composed of three parts: power cabinet, relay cabinet and meter cabinet.

Shell of electric heating cover are completely metal steel structure, welded by Q235 steel and profiled bars, the thickness of shell is 6mm.

Furnace body is made of silicate cotton bricks in special shapes. Upside and coping of furnace lining are constructed by silicate cotton type fiber boards and fixed by heat resistant stainless steel bolts.

Part	Item	Parameters
Part	Item	RBG100 /200	RBG120 /250	RBG140 /290	RBG160 /320	RBG180 /320	RBG200 /290	RBG220 /290
Heating cover	Rated power(kw)	200	280	330	380	450	480	540
	Highest temperature(°C)	950	950	950	950	950	950	950
	Weight of cover (kgs)	3500	4500	5500	6500	8000	9500	10000
Cooling cover	Air flow for cooling(m3/h)	10000	10000	12000	15000	15000	18000	20000
	Power for air cooling(kw)	0.75*2	0.75*2	1.1*2	0.75*3	0.75*3	1.1*3	1.1*3
	Rotating speed for air cooling(r/min)	1500	1500	1500	1500	1500	1500	1500
	Water flow for cooling(r3/h)	8	10	10	12	15	18	18
Furnace base	Max. loading capacity(kgs)	8000	15000	25000	35000	50000	55000	60000
	Max. diameter for loading(mm)	1000	1200	1400	1600	1800	2000	2200
	Fan power for hot flow(kw)	22/8	37/10	22/8	47/12	47/12	55/14	55/14
	Rotating speed for hot flow fan(r/min)	1500/750	1500/750	1500/750	1500/750	1500/750	1500/750	1500/750
	Impeller diameter for fan(mm)	650	750	850	950	950	1050	1050
Inner cover	Diameter of inner cover(mm)	1200	1400	1600	1800	2000	2200	2400
	Max. height for loading(mm)	2000	2500	2900	3200	3200	2900	2900
	Highest permit temperature(°C)	850	850	850	850	850	850	850
	Uniformity of furnace temperature(°C)	±5	±5	±5	±5	±5	±5	±5
	Space volumne(m3)	3	5	7.5	10	13	15	18
	Highest permit air pressure(kpa)	9.5	9.5	9.5	9.5	9.5	9.5	9.5
